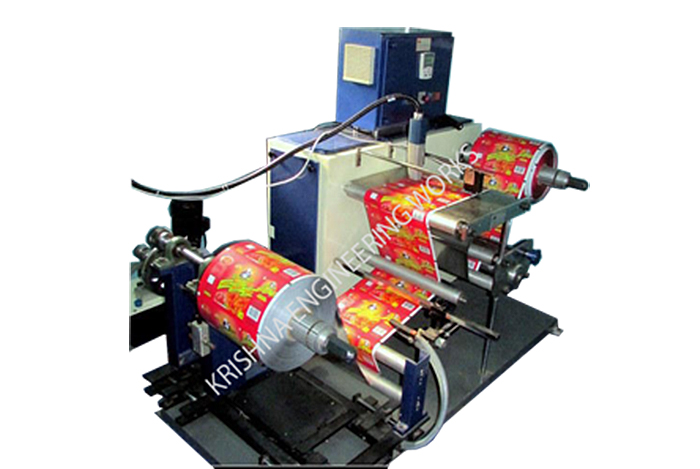

Industrial Inkjet Printer With Winding Rewinding Machine

We are dealing on designing and building inkjet printer with winder rewinder. Also, it is designed for more accurate printing. Such relevance and requirement is increasing with the rising standards of the Flexible Packaging and Converting Industry. It makes us most experienced manufacturer, exporter & supplier of industrial inkjet printer with winder rewinder.

Industrial Inkjet Printer With Winding Rewinding Machine


  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer.
  3. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  4. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  5. It is great substitute to online coding / batching operation
  6. Convenient height for operation
  7. Compact Design
  8. Variable speed drive
  9. Double drive
Technical Specification of Machine:
Web width 100 to 1500 MM
Max. Weight of Unwind 100 to 1000 KG (Different models for different weight)
Max. Parent Reel Dia. 400 MM
Max. Rewind Reel Dia. 400 MM
Rewind Core Dia. 76 MM
Motor 2 HP AC / DC Motor (3, 5 HP also available on suitable model)
Maximum Designed Speed 100 to 150 Mtrs / Min
